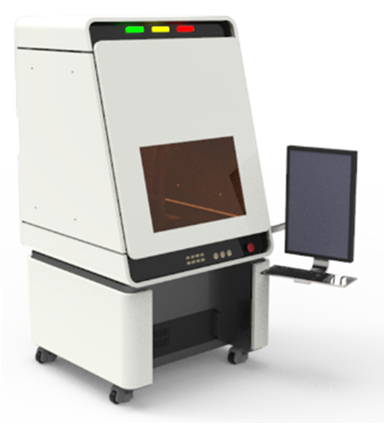

- Active Align process capability
- 6 axis active align
- Min. incremental motion X,Y,Z :0.2 μm
- Min. incremental motion θX, θY, θZ: 0.001o
|
|

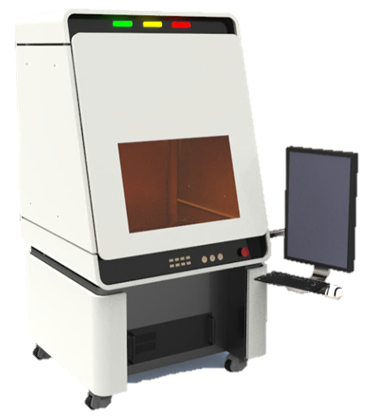

- Lens Alignment Process Capability
- Fully automatic 4-channel Lens Alignment
- 6 Axes alignment module
- Lens XYZ axes ，Travel range:30mm-50mm，Resolution: 0.05µm
- Lens TX,TY，Txy Resolution: 0.01°
|
|

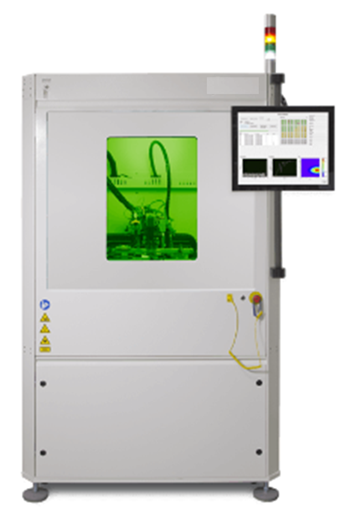

- Laser Welding Process Capability
- YAG welding, CCD Coaxial optical system
- YAG welding axes: Resolution: 0.1µm
- XYZ axes ，Travel range:15mm，Resolution: 0.1µm
- TX,TY，Txy Resolution: 0.05 °, Rotate 360 degrees
|
|
|
